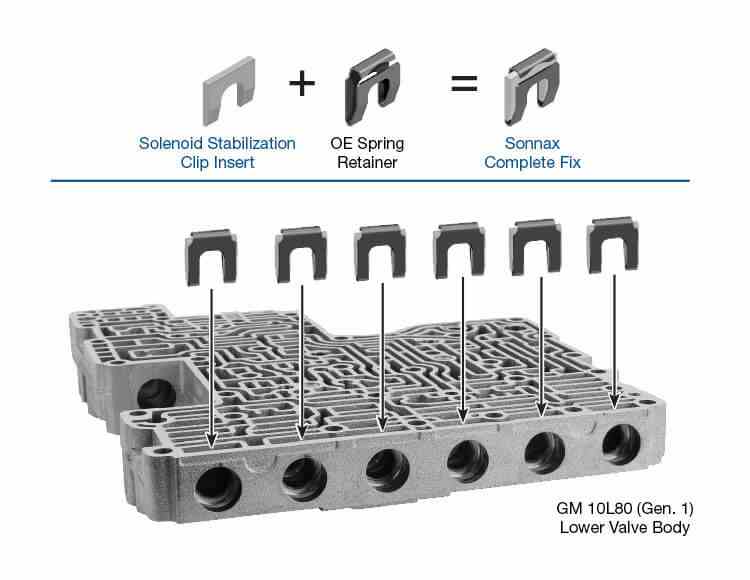

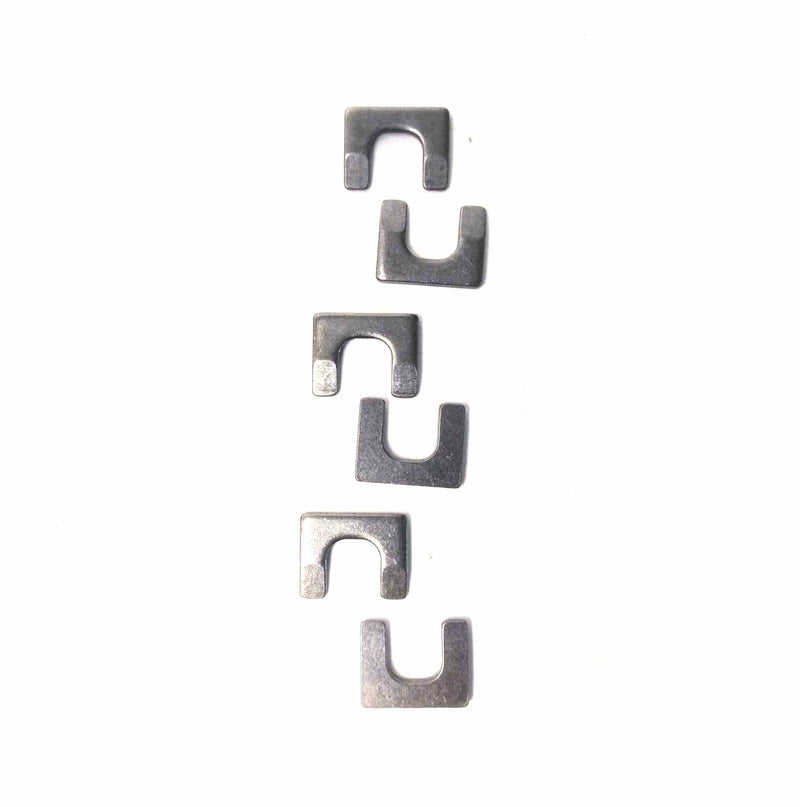

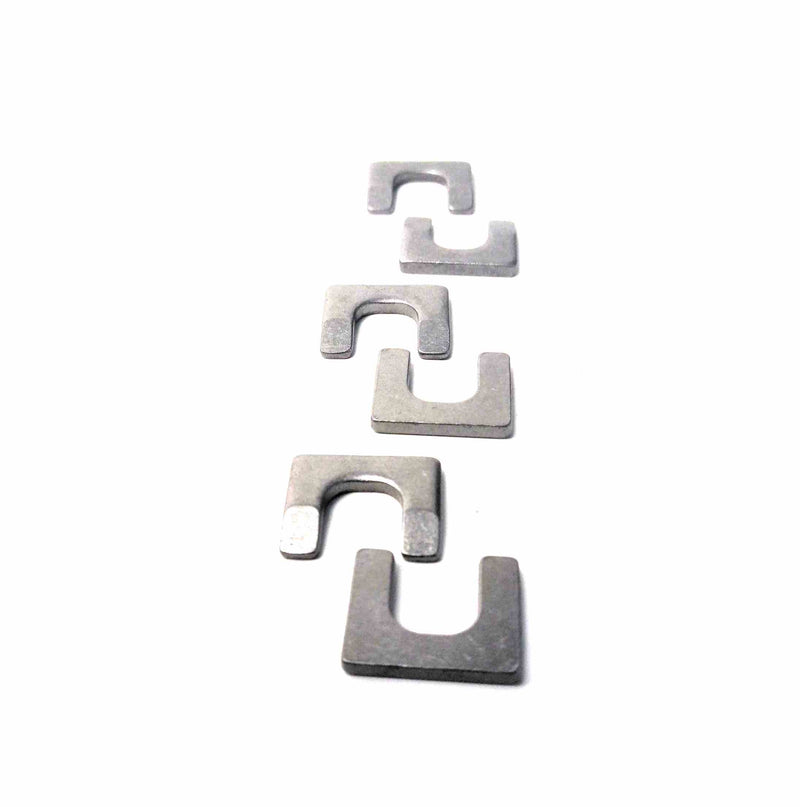

 In listed Allison, GM and Ford 10-speed transmissions, heavy linear force solenoids (LFS) are held in place by small spring retainers. These spring retainers are prone to collapse, allowing the solenoid to wobble and become off-center with the inboard valve and damage the casting at the clutch valve bore opening. These LFSs actuate by extending a small pintle about .090in to stroke the inboard clutch control valve. When the spring retainer collapses and allows the LFS to be off-center, the pintle cannot stroke the clutch control valve appropriately, compromising the component apply timing and pressure, resulting in shift complaints and converter issues. Valve body damage can also occur if the LFSs remain loose, resulting in valve damage during rebuild. Sonnax solenoid stabilization clip insert 105740-01K can be used in conjunction with OE spring retainers to secure the solenoids back in place. These solid steel clip inserts force the OE spring retainers to completely fill the casting and solenoid groove gap and prevent the retainers from future collapse. If the spring retainer has already collapsed, the clip insert can be used to reform the retainer to its proper size. Simply place it inside the retainer to expand it to appropriate retention dimensions. Prevents future spring retainer collapse Reshapes collapsed spring retainers Drop-in Zip Valve™ parts install quickly and easily 10L1000, 10L60 (Gen. 1) 10L60 (Gen. 2) 10L80 (Gen. 1) 10L80 (Gen. 2) 10L90 (Gen. 1) 10L90 (Gen. 2) 10R140 10R60 10R80 10R90

Transmissions: 10R80 2016-UP, 10R140 2020-UP, 10L90 2016-UP, 10L80 2016-UP, 10L60 2016-UP

Vehicle

CADILLAC
CT6 2018 10 SPD 4WD 4.2L
CT6 2018 10 SP R/4WD V8 4.2L
CHEVROLET
Camaro 2016-2018 10 SPD RWD 6.2L
Corvette, Silverado 2017-2018 10 SPD RWD 6.2L
FORD
F-150 2016 10 SP R/4WD V6 3.5L V8 5.0L
F-150 SUPERCREW 2016 10 SP R/4WD V8 5.0L
MUSTANG 2015-2016 10 SP RWD L4 2.3L V8 5.0L
GMC
Sierra 2018 10 SPD R/4WD 3.0L 5.3L 6.2L
