Friction Clutch Raybestos Transfer Case ATC350 ATC450 MP3010 MP3015 MP3023 MP3024

Raybestos Transfer Case Friction Clutch Plate for TC350, ATC450, MP3010, MP3015, MP3023, MP3024, NQH, TRACKHAWK 4x4 (2007/UP)

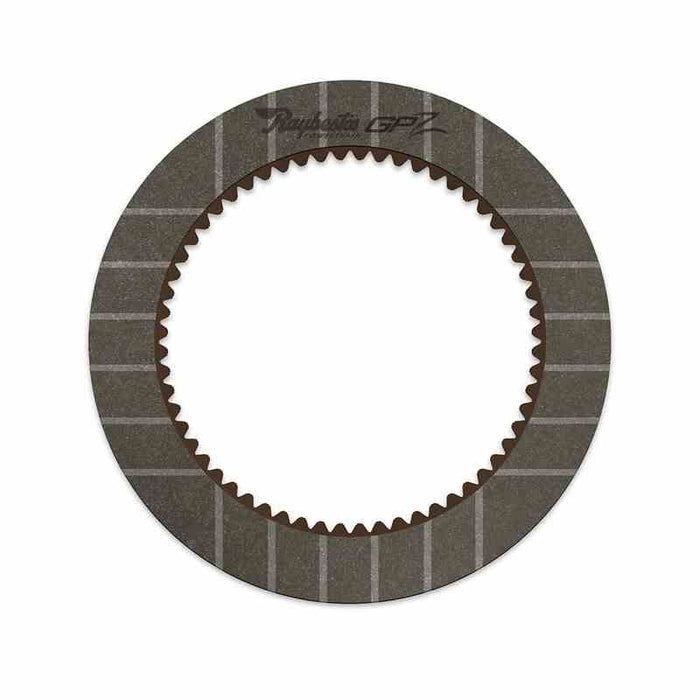

The GPZ001 Transfer Case Friction Clutch Plate is a high-performance upgrade designed for ATC350, ATC450, MP3010, MP3015, MP3023, MP3024, NQH Transfer Cases, and Track Hawk applications. This advanced friction plate features GPZ material and is reinforced with a full 60-tooth clutch count for superior durability and performance.

Raybestos Powertrain GPZ friction plates are engineered to enhance transmission performance and longevity. This next-generation friction material significantly outperforms OE materials, resisting high stress, extreme temperatures, and continuous cycling. In heavy-duty and high-stress driving conditions, GPZ delivers outstanding results, outperforming OE friction materials by up to 20%. Additionally, its performance improves as power increases.

Transmissions: MP3024 2006-UP, MP3023 2006-UP, MP3015 2006-UP, MP3010 2006-UP, ATC450 2006-UP, ATC350 2006-UP

OEM : 19133076 (GM)

Specifications:

• Thickness: 0.063 in.
• Outside Diameter: 5.276 in.
• Groove: 2-Way Multi-Parallel
• Teeth: 60

Key Benefits:

• Improved shift feel
• Handles high horsepower applications
• Increased torque capacity
• Maintains piston travel
• Optimized performance under extreme conditions
• Enhanced heat resistance
• Proudly made in the USA

Alternate Words: 19133076 Raybestos, Automatic Transmission, Friction Clutch Plate
